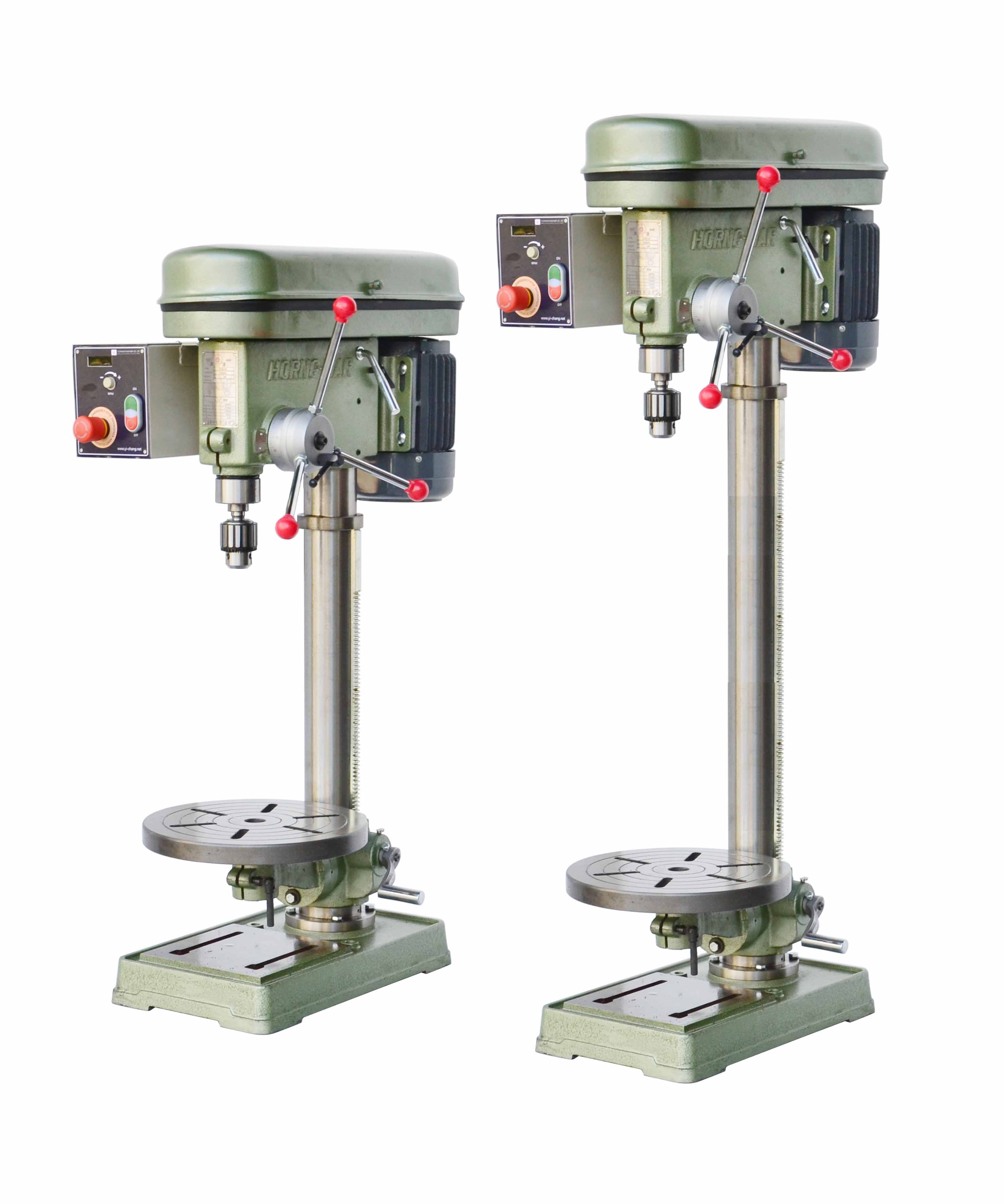

Bench Drilling Press Machine Various Speed Manual HD-14I


Bench Drilling Press Machine Various Speed Manual HD-14I is made with following good points:

1. A new inverter system is assembled, to offer the user a easier operation to change spin paces, it is convenience for workshops or garage works.

2. The traditional pulley system is still kept for extending the range of spin speed.

3. The inverter system is also suitable for other models of machines , please contact seller for more informations.

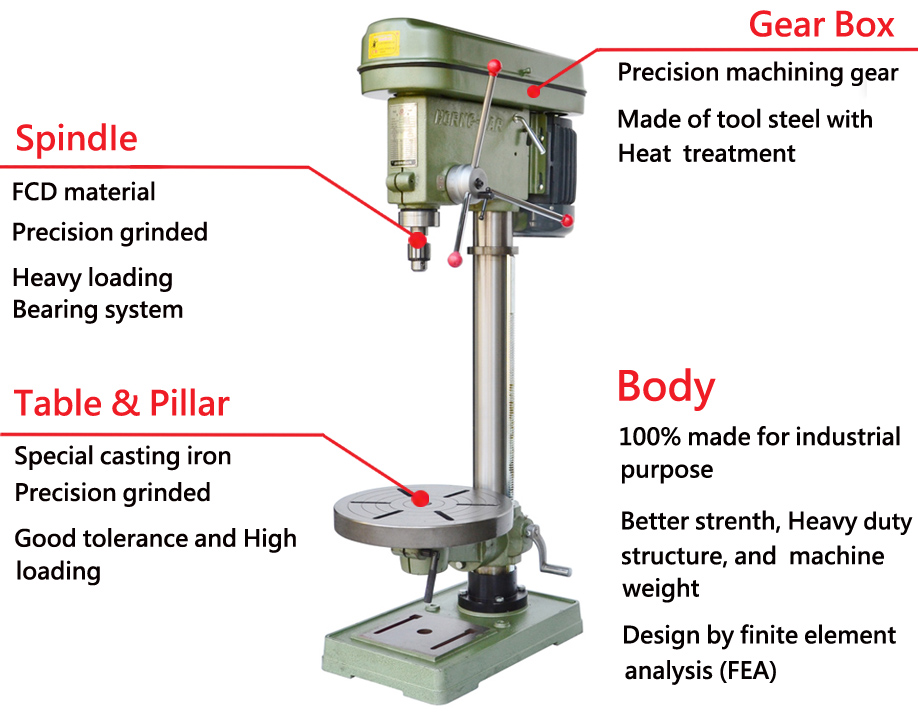

4. Yi Chang produced Horng Dar brand Bench Drilling Press Machine (manual type) is the basic model of all of our advanced product designs. The body of the machine is made of FC20 casting steel. The build is strong and durable. It ensures the stability in use.

5. The machine provides the precision by its manual operation design in combination with the stable axle center.

6. Any product of the series has less than 0.07mm tolerance in the verticality between spindle center and working table (HD-14 has less than 0.05mm). We have examined and improved the precision of all the machines.

7. Quality made in Taiwan.


DESCRIPTION

Video displays please see : https://goo.gl/uQZZOJ



SPEC

Specifications / Model

HD-14I

▶️HD-14

▶️HD-340

▶️HD-25

Stroke

Manual

Manual

Manual

Manual

Spindle Type

Inside Spindle

MT2

MT2

MT2

MT3

For Chuck

JT6

JT6

JT6

JT6

Working Ability

Steel (S45C)

3-16

3-16

3-16

5-25

Spindle Travel (mm)

100

100

100

140

Motor

1HP-4P

1HP-4P

1HP-4P

2HP-6P

Spindle Speed

RPM (Steps)

50HZ

400-2700

480-2300 (4)

190-2800 (9)

160-1342 (9)

60HZ

550-2700 (4)

240-3400 (9)

190-1610 (9)

Weight (kg)

95

91

94

199

1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling.

2. Customized spindle speed might be required for particular materials or drilling sizes.
