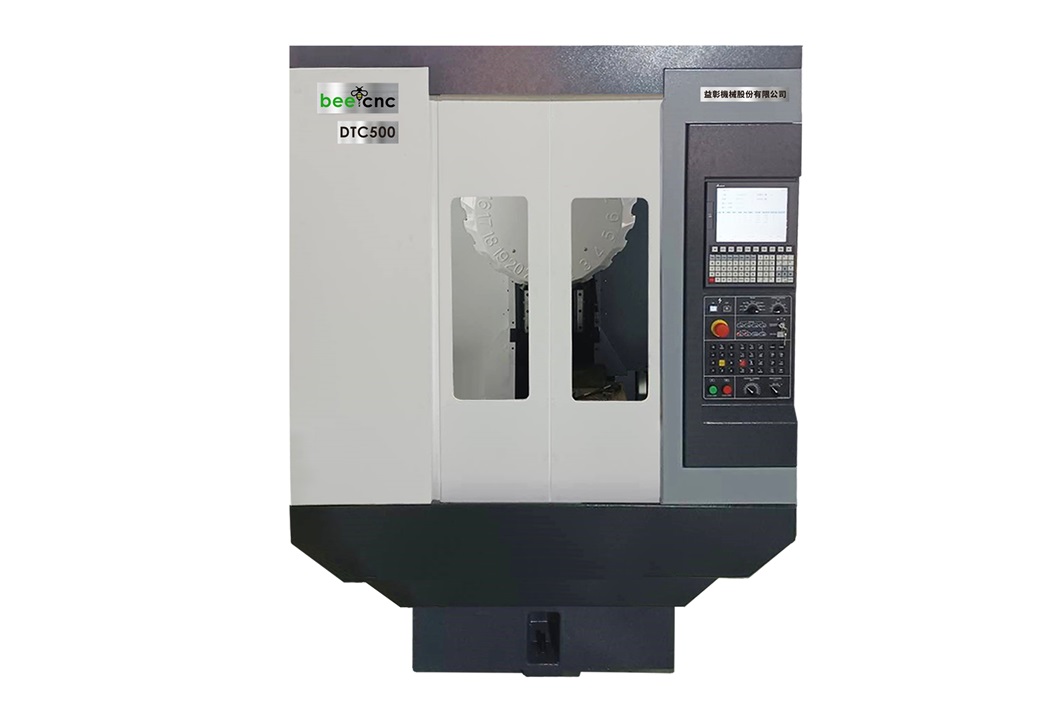

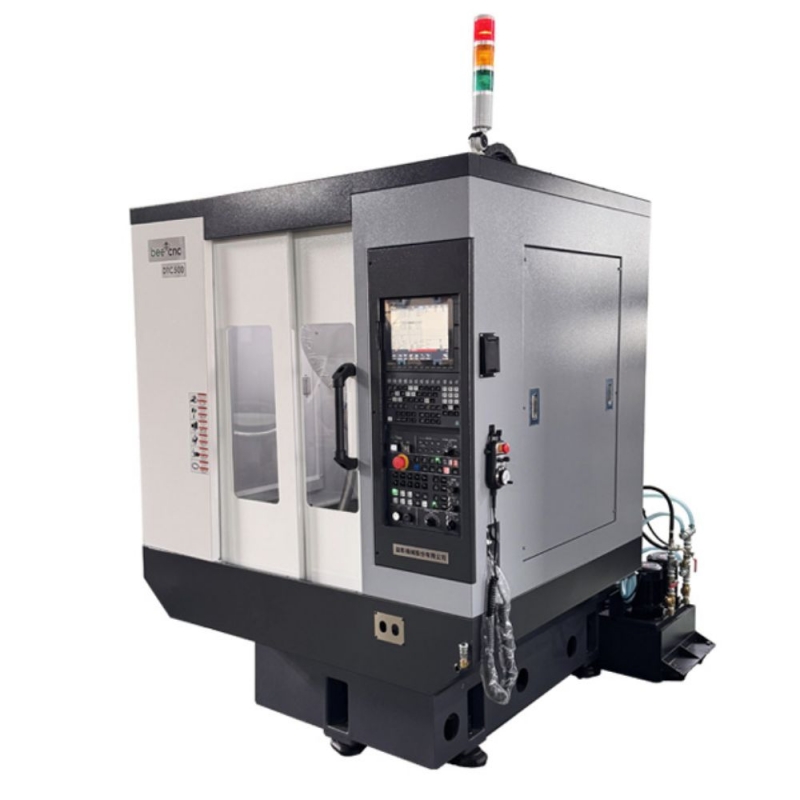

Beecnc Tapping Cente
a new breakthrough for innovation

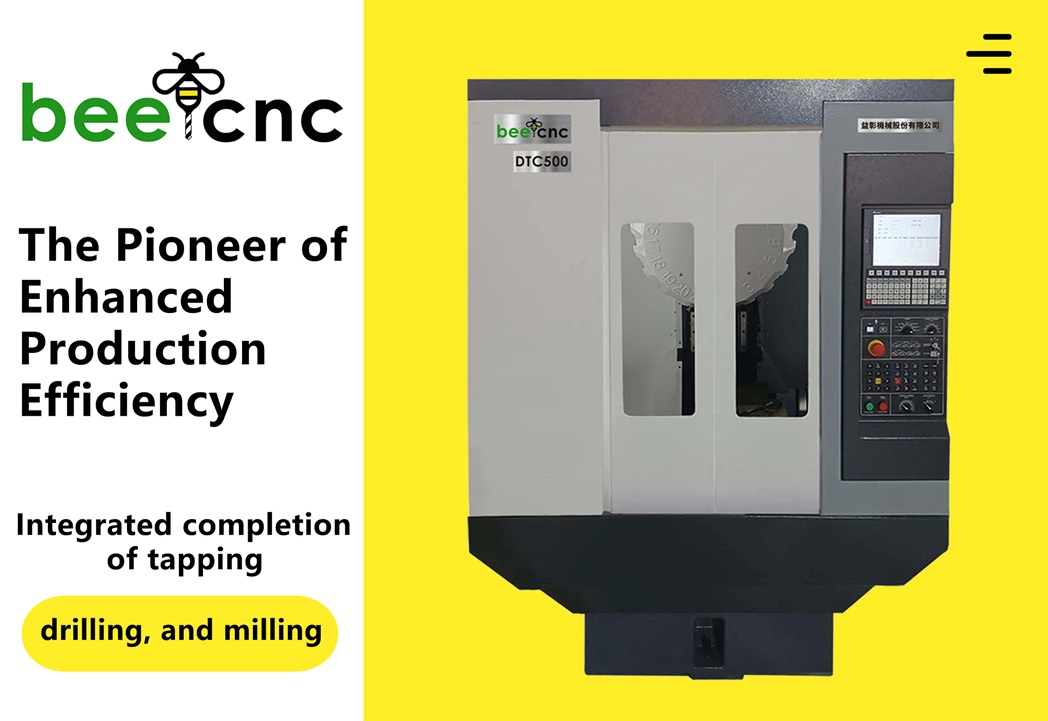

One machine for tapping, drilling, and milling
Combining 30 years of experience to innovation
DESCRIPTION
This is not only a machine; but also an accelerator to success

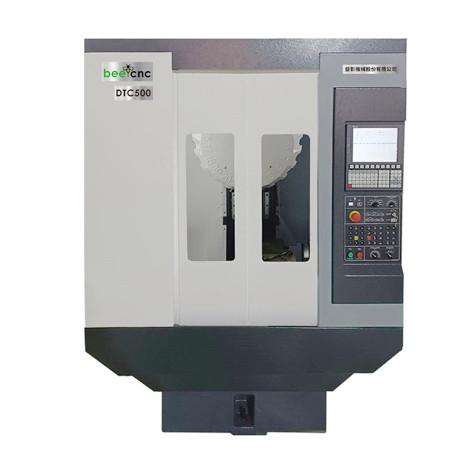

| Mechanical specifications | Unit | DTC-500 | |
| Stroke | X axis | mm | 500 |
| Y axis | mm | 400 | |
| Z axis | mm | 330 | |
| Distance from spindle nose to work surface | mm | 150~480 | |
| workbench | Work surface size | mm | 650*400 |
| Maximum workload | kg | 300 | |
| Work surface height (above ground) | mm | 800 | |
| Spindle | Taper type | BT-30 ( Direct connection ) |
|
| Speed range | rpm | 12000 / 24000 ( OPT ) | |
| Feed rate | Rapid feed rate | m / min | X、Y、Z-48m /min |
| cutting feed rate | m / min | X、Y、Z-10m /min | |

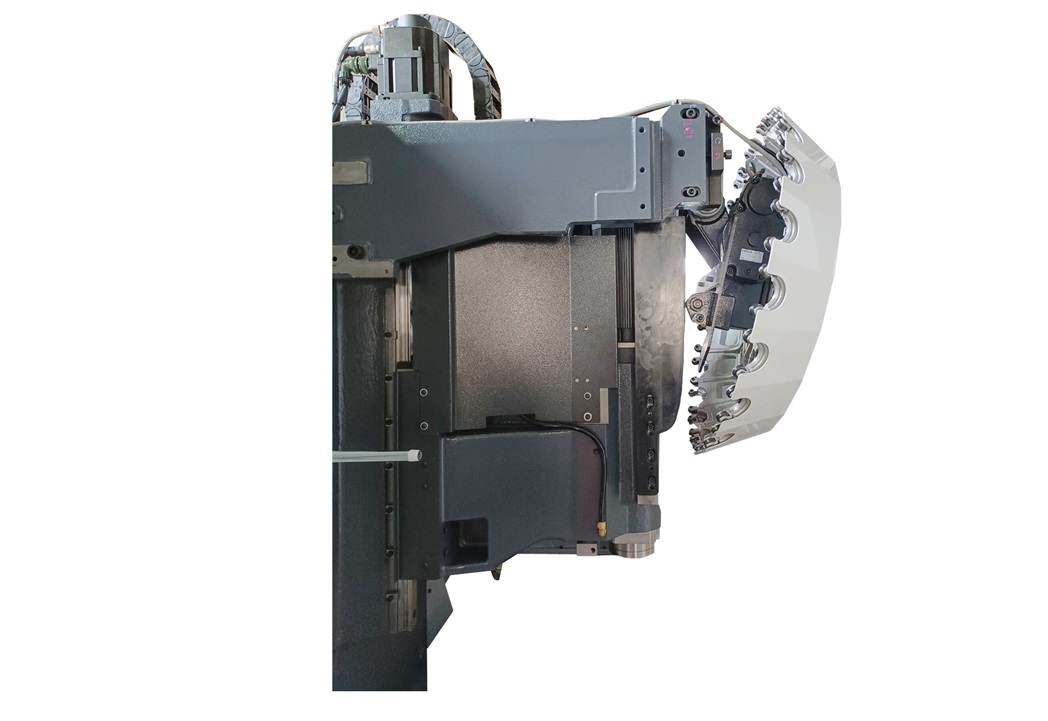

| Automatic tool changing system | Tool specifications | BT-30 | |
| Maximum tool diameter | mm | Ø80mm | |

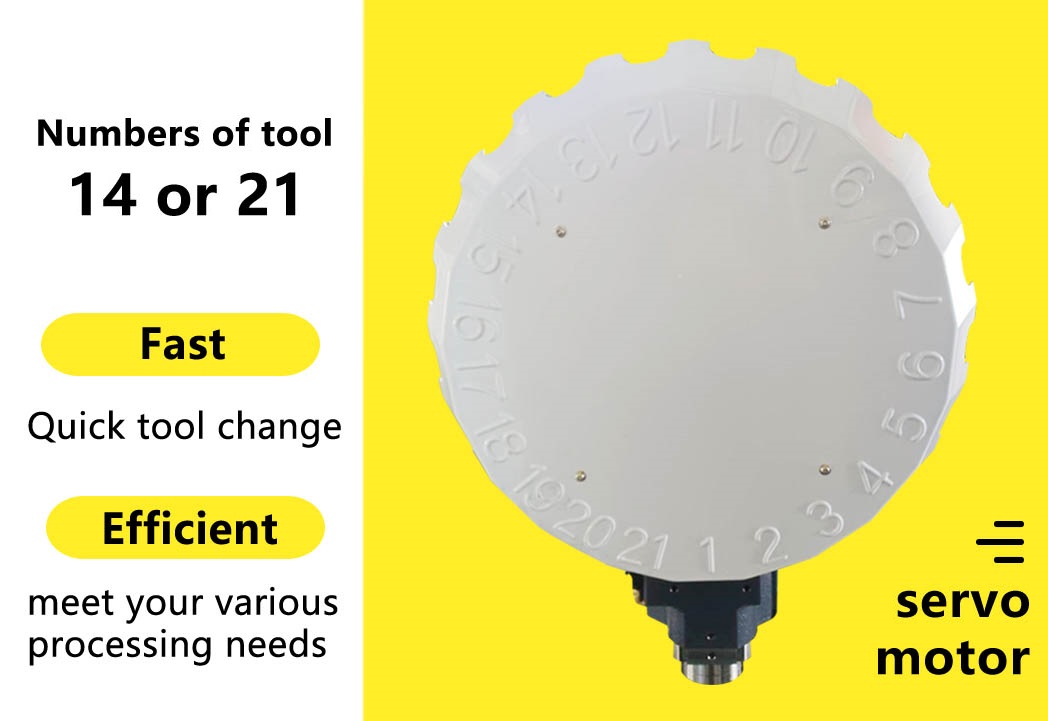

| Numbers of tool | 14 or 21 | ||
| Maximum tool length | mm | 250mm | |
| Tool weiaht | kg | 2KG |
Suitable customer base
For complex drilling and tapping operations，Secondary processing for casting, forging, and any kind of forming.
Combine with lathe or milling machines to reduce production line costs.
Just one unit can meet your various needs, please feel free to consult us immediately
SPEC
Invite you to get to know us better
Professional Fixtures and Jigs Design，Planning customized machine.
| see more | |
 |
|
| Multiple Spindle Head (Tap/Drill) | |
 |
 |
| Drilling Machine | Tapping Machine |
 |
 |
| Customized Special Purpose Drilling & Tapping Machine | Working Table & Coolant |
 |
|
| Accessories | |
Hope to serve you
