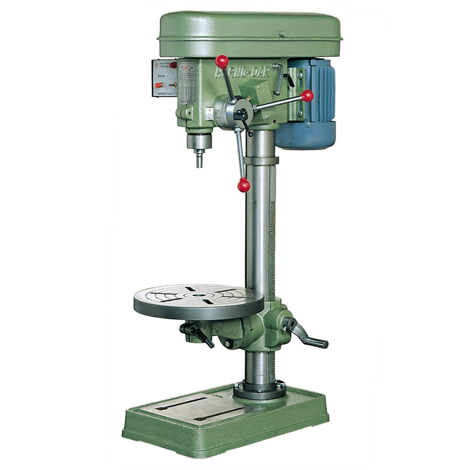

Tapping Machine Precision HDT-340

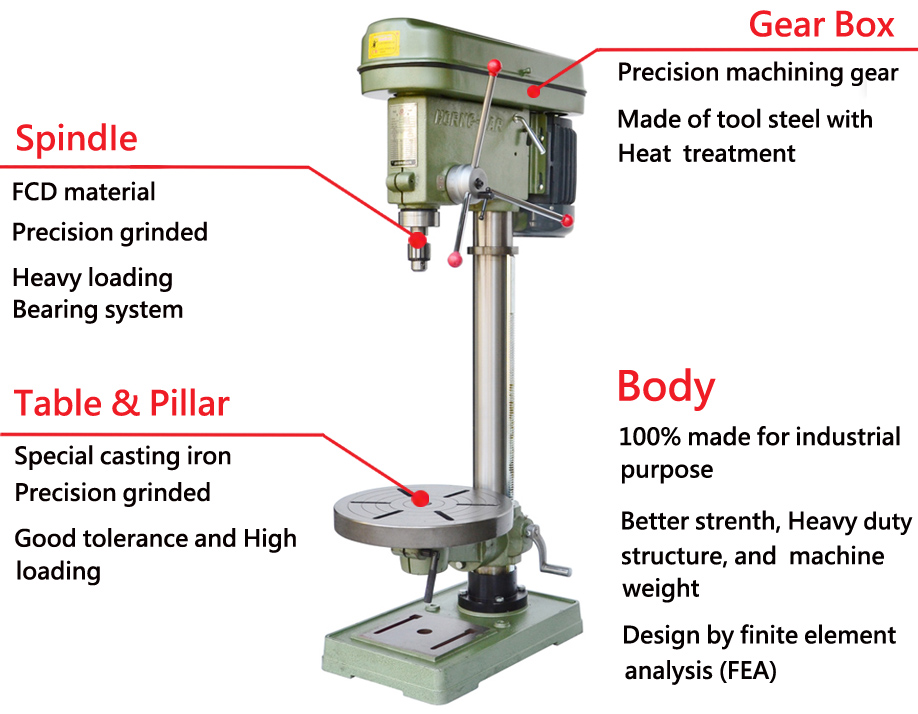

Tapping Machine Precision HDT-340 is made with following good points:
1. Yi Chang produced Horng Dar brand Bench Tapping Machines are all installed with self designed and produced Electronic Control Device for the best use of our machines. Unlike other outside electronic control device providers, we provide after sale service and maintenance.
2. The motor is designed to stand high heat to increase the life of the machine.
3. Quality made in Taiwan.
DESCRIPTION
Video displays please see : https://goo.gl/uQZZOJ
SPEC
|
Specifications / Model |
HDT-340 |
||||
|
Stroke |
Manual |
Manual |
Manual |
||
|
Spindle Type |
Inside Spindle |
MT2 |
MT3 |
MT3 |
|
|
For Chuck |
JT6 |
JT6 |
JT6 |
||
|
Working Ability (Steel S45C) |
Drill Capacity |
3-16 |
5-25 |
15-32 |
|
|
Tapping Capacity |
3-13 |
5-20 |
15-32 |
||
|
Spindle Travel (mm) |
100 |
140 |
140 |
||
|
Motor |
1HP-4P |
2HP-6P |
2HP-6P |
||
|
Spindle Speed RPM (Steps) |
50HZ |
250-960 (9) |
160-1342 (9) |
55-175 (4) |
|
|
60HZ |
300-1150 (9) |
190-1610 (9) |
65-210 (4) |
||
|
Weight (kg) |
101 |
204 |
221 |
||
|
1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling. 2. Customized spindle speed might be required for particular materials or drilling sizes. |
|||||
