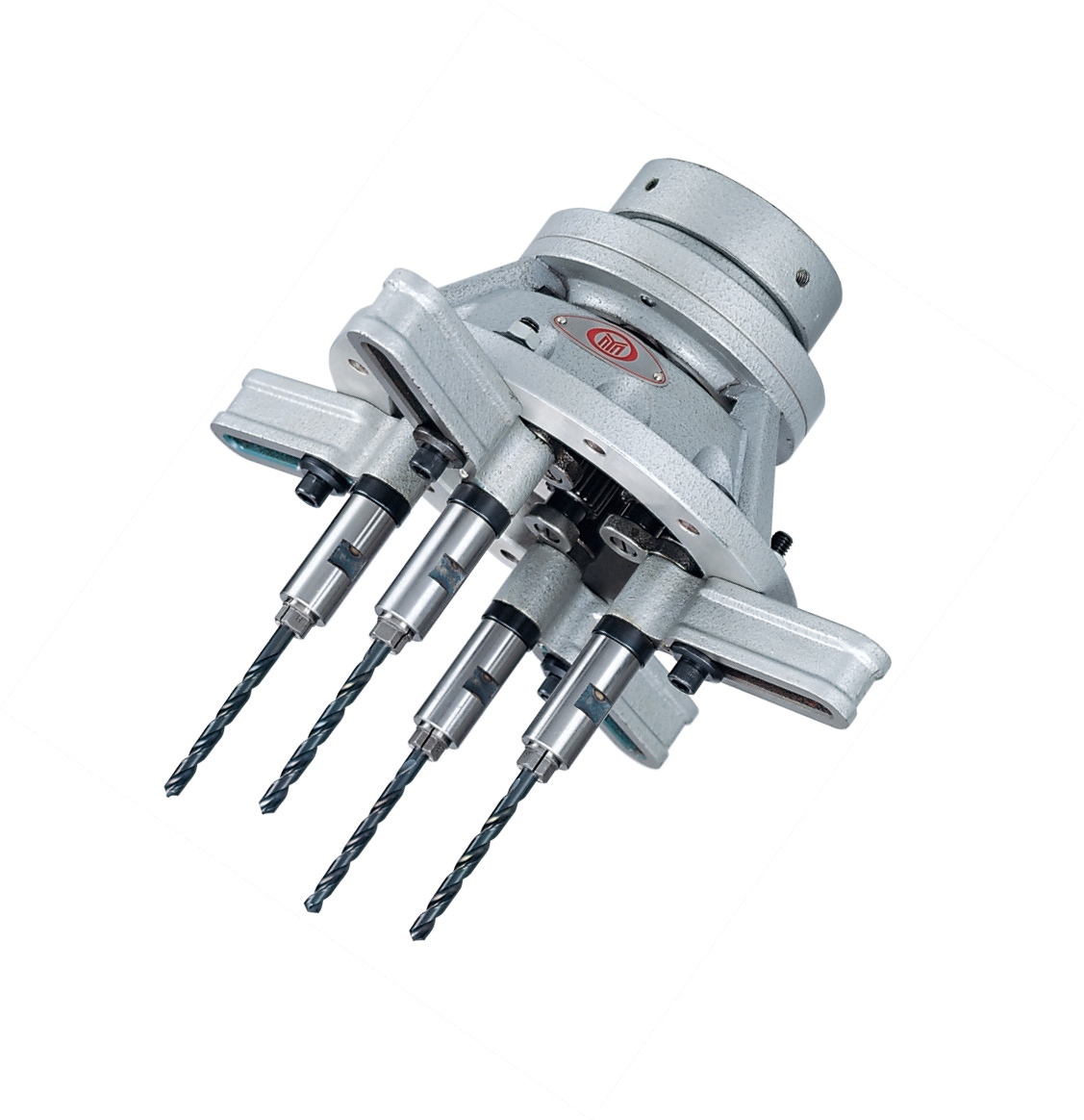

Multiple Spindle Head (Tap/Drill) NA Type
Multiple Spindle Head (Tap/Drill) - NA Type is made with following good points:
1. Customized type is available.
2. Quality made in Taiwan.
DESCRIPTION
SPEC
|

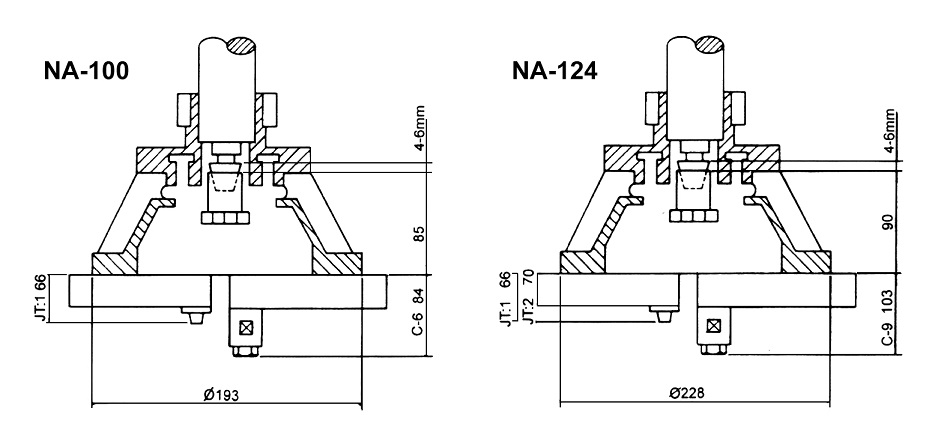

Dimensions / Type |
NA100 |
NA124 |
|
|
Max. Spindle PCD (mm) |
100 |
125 |
|
|
Min. Spindle PCD (mm) |
25 (4-spindled) |
38 (4-spindled) |
|
|
Min. Spindle Pitch By Every 2 Spindles (mm) |
18.7 |
27 |
|
|
Max. Working Capacity |
Drill Capacity (mm) |
6 |
8 |
|
Tapping Capacity |
M6 |
M8 |
|
|
RPM Ratio To Main Spindle |
1:1 or 1:1.3 |
1:1 or 1:1.3 |
|
|
Numbers Of Spindle |
2-4 |
2-4 |
|

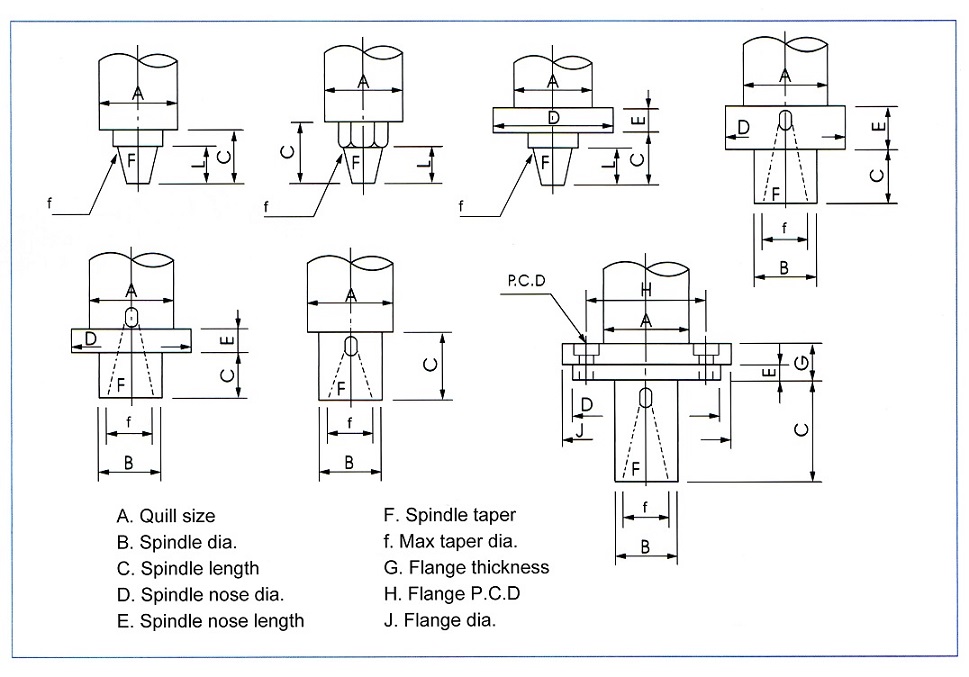

How To Order Multiple Spindle Head : https://goo.gl/HykXv9
