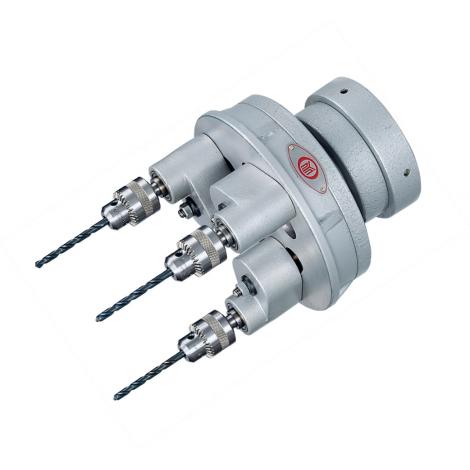

Multiple Spindle Head (Tap/Drill) D Type
Multiple Spindle Head (Tap/Drill) - D Type is made with following good points:
1. Customized type is available.
2. Quality made in Taiwan.
DESCRIPTION
SPEC
|
Dimensions / Type |
D170 |
D175 |
D192 |
D198 |
D227 |
D240 |
D340 |
D390 |
|
|
Max. Spindle PCD (mm) |
170 |
170 |
177 |
198 |
227 |
240 |
342 |
390 |
|
|
Min. Spindle PCD (mm) |
38 |
43 |
52 |
61 |
98 |
85 |
208 |
245 |
|
|
Min. Spindle Pitch By Every 2 Spindles (mm) |
38 |
38 |
38 |
43 |
37 |
56 |
56 |
56 |
|
|
Max. Working Capacity |
Drill Capacity (mm) |
13 |
13 |
6.5 |
10 |
6.5 |
13 |
13 |
13 |
|
Tapping Capacity |
M10 |
M10 |
M8 |
M10 |
M8 |
M10 |
M10 |
M10 |
|
|
RPM Ratio To Main Spindle |
1:2.7 |
1:2.7 |
1:3 |
1:2.9 |
1:5.1 |
1:3.3 |
1:3.3 |
1:3.1 |
|
|
Numbers Of Spindle |
2 |
3 |
4 |
4 |
6 |
4 |
4 |
4 |
|
How To Order Multiple Spindle Head : https://goo.gl/HykXv9
