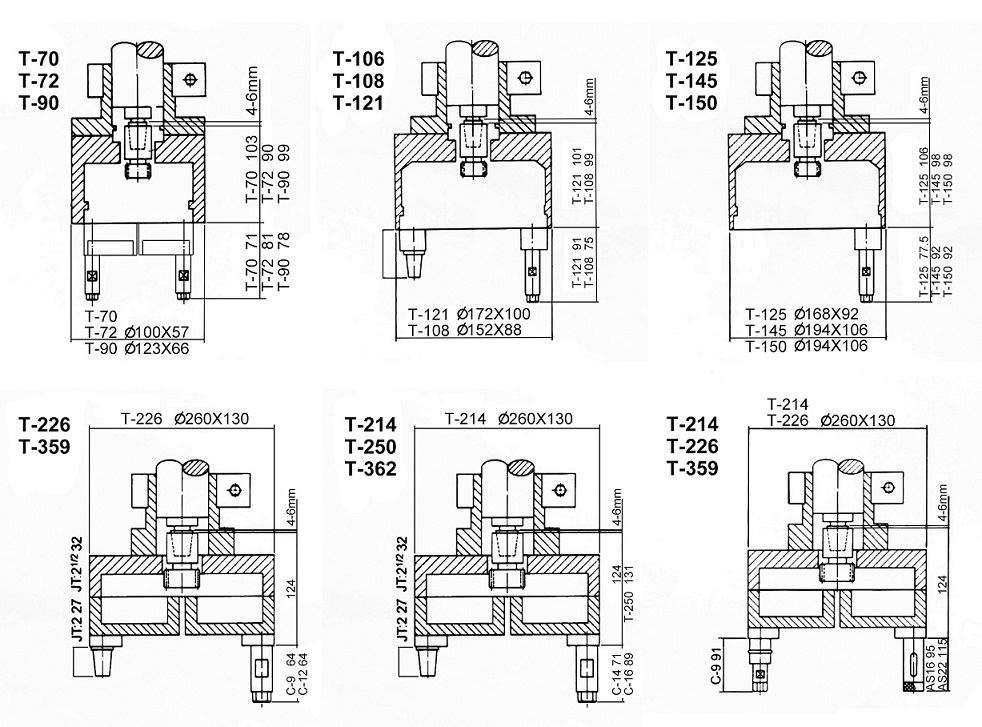

Dimensions / Type

T70

T72

T90

T106

T108

T121

T125

T145

T150

T214

T226

T250

T359

T362

Max. Spindle Pitch (mm)

70

72

90

108

108

121

125

146

151

214

226

250

359

362

Min. Spindle Pitch (mm)

10

12.7

15

18

18

24

29

29

24

45.5

33.5

60

56

56

Max. Working Capacity

Drill Capacity (mm)

3

4

5

6

6

8

8

10

8

12

10

16

10

12

Tapping Capacity

M3

M4

M5

M6

M6

M7

M7

M9

M7

M12

M10

M15

M10

M12

RPM Ratio To Main Spindle

1:1

1:1

1:1

1:1

1:1

1:1

1:1

1:1

1:1

1:1

1:1

1:1

1:1

1:1

Numbers Of Spindle

2

2

2

2

2

2

2

2

2

2

2

2

2

2

Support Bearing Type

(B=Ball Bearing,

C=Copper)

C

C

C

B

C

C

B

B

B

B

B

B

B

B
